Westfalia T25 / T3 Sport Joker



The 1982 - 1987 Volkswagen Watercooled T25 / T3 Westfalia Sport Joker Model History.

 In their 1979 brochure Westfalia listed the availability of a model called the “Joker 7”. This was a basic version of the Joker which came without the gas supply equipment, gas cooker, fridge, circulating air heating, mains battery charger and leisure battery. In 1982 Westfalia introduced a new model called the “Sport Joker” which I guess was based on the “Joker 7” concept. Available in either Bus (standard steel roof) or Wohnmobil (poptop or hightop) versions. Marketed as a low budget model useful for many different purposes (especially for people into sports such as surfing etc) and for those who wanted to equip their vehicle individually.

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)



1) VW Westfalia Sport Joker engine options and approx price (inclusive tax when new in standard form):

This was quite a rare model and information is scarce. The 1982 versions would have been aircooled and available with the same engine options as the aircooled Westfalia Joker. At the moment I don’t have any information about the prices in 1982. The first price list I have been able to find was the one for the watercooled version of March 1984.

Prices are from 03/84 price list. Prices are in German Deutschmark:

VW Westfalia Sport Joker (VW Standard Tin Roof)

Petrol  Watercooled  1.9 Litre Otto Motor DF (1913cc) 44 Kw 60PS 4 speed manual gearbox 22,098 DM

Petrol  Watercooled  1.9 Litre Otto Motor DF (1913cc) 44 Kw 60PS 5 speed manual gearbox 22,690 DM

Petrol  Watercooled  1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS 4 speed manual gearbox 22,736 DM

Petrol  Watercooled  1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS 5 speed manual gearbox 23,328 DM

Petrol  Watercooled 1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS automatic gearbox 24,696 DM

Diesel  Watercooled 1.6 Litre CS (1584cc) 37 Kw 50PS 4 speed manual gearbox 23,590 DM

Diesel  Watercooled 1.6 Litre CS (1584cc) 37 Kw 50PS 5 speed manual gearbox 24,183 DM

From 01/85 price list a Turbo Diesel model was available:

Turbo Diesel  Watercooled 1.6 Litre JX (1588cc) 51 Kw 70PS 4 speed manual gearbox 25,578 DM

Turbo Diesel  Watercooled 1.6 Litre JX (1588cc) 51 Kw 70PS 5 speed manual gearbox 26,187 DM

VW Westfalia Sport Joker 1 (Pop Top)

Petrol  Watercooled  1.9 Litre Otto Motor DF (1913cc) 44 Kw 60PS 4 speed manual gearbox 23,373 DM

Petrol  Watercooled  1.9 Litre Otto Motor DF (1913cc) 44 Kw 60PS 5 speed manual gearbox 23,966 DM

Petrol  Watercooled  1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS 4 speed manual gearbox 24,011 DM

Petrol  Watercooled  1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS 5 speed manual gearbox 24,604 DM

Petrol  Watercooled 1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS automatic gearbox 25,972 DM

Diesel  Watercooled 1.6 Litre CS (1584cc) 37 Kw 50PS 4 speed manual gearbox 24,867 DM

Diesel  Watercooled 1.6 Litre CS (1584cc) 37 Kw 50PS 5 speed manual gearbox 25,459 DM

From 01/85 price list a Turbo Diesel model was available:

Turbo Diesel  Watercooled 1.6 Litre (1588cc) 51 Kw 70PS 4 speed manual gearbox 26,890 DM

Turbo Diesel  Watercooled 1.6 Litre (1588cc) 51 Kw 70PS 5 speed manual gearbox 27,500 DM

VW Westfalia Sport Joker 3 (High Top)

Petrol  Watercooled  1.9 Litre Otto Motor DF (1913cc) 44 Kw 60PS 4 speed manual gearbox 23,778 DM

Petrol  Watercooled  1.9 Litre Otto Motor DF (1913cc) 44 Kw 60PS 5 speed manual gearbox 24,370 DM

Petrol  Watercooled  1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS 4 speed manual gearbox 24,417 DM

Petrol  Watercooled  1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS 5 speed manual gearbox 25,020 DM

Petrol  Watercooled 1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS automatic gearbox 26,377 DM

Diesel  Watercooled 1.6 Litre CS (1584cc) 37 Kw 50PS 4 speed manual gearbox 25,272 DM

Diesel  Watercooled 1.6 Litre CS (1584cc) 37 Kw 50PS 5 speed manual gearbox 25,864 DM

From 01/85 price list a Turbo Diesel model was available:

Turbo Diesel  Watercooled 1.6 Litre (1588cc) 51 Kw 70PS 4 speed manual gearbox 27,307 DM

Turbo Diesel  Watercooled 1.6 Litre (1588cc) 51 Kw 70PS 5 speed manual gearbox 27,917 DM

Then add the additional cost for Westfalia equipment depending on the configuration chosen (03/84 Pricelist):

VW Westfalia Sport Joker with VW steel roof - 2,878 DM

VW Westfalia Sport Joker 1 with Westfalia Pop Top - 5,240 DM

VW Westfalia Sport Joker 3 with Westfalia High Top - 6,689 DM



2) Volkswagen Westfalia Sport Joker Colour Options

The 1983 Westfalia Multimobile brochure has a small note stating that the “Sport Joker” model was available in all the colours that the current Volkswagen Transporter was available in. According to the March 1984 brochure the Westfalia Sport Joker was available in 11 exterior colours:

A7A7 Light Grey (L345) (Lichtgrau) - Available with interior upholstery van Dyck Green/Brown (KW).

B5B5 Bamboo Yellow (LH1B) (Bambusgelb) - Available with interior upholstery van Dyck Green/Brown (KW).

D6D6 Timor Beige (LH8T) (Timorbeige) - Available with interior upholstery van Dyck Green/Brown (KW).

E1E1 Brilliant Orange (L20B) (Leuchtorange) - Available with interior upholstery van Dyck Green/Brown (KW).

H3H3 Marsala Red (LH3D) (Marsalarot) - Available with interior upholstery van Dyck Green/Brown (KW).

J5J5 Medium Blue (LH5G) (Mediumblau) - Available with interior upholstery van Dyck Blue/Brown (KD).

N1N1 Escorial Green (LT6A) (Escorialgrün) - Available with interior upholstery van Dyck Green/Brown (KW).

R1R1 Pastel White (L90D) (Pastellweiss) -Available with interior upholstery van Dyck Green/Brown (KW) or van Dyck Blue/Brown (KD)

T3T3 Merian Brown (LA8A) (Merianbraun) -Available with interior upholstery van Dyck Green/Brown (KW) or van Dyck Blue/Brown (KD)

J4J4 Kurilian Blue (LH5T) (Kurilenblau) - Available with interior upholstery van Dyck Blue/Brown (KD).

X2X2 Dove Grey Metallic (LH5U) (Taubengrau Metallic) (Extra cost 1,483 DM) - Available with interior upholstery van Dyck Blue/Brown (KD)



lightgrey

WestfaliaBambooYellow

WestfaliaTimorBeige

WestfaliaLightOrange













1985SportJokerTimorBeige



































ClubJokerMarsalaRed

WestfaliaMediumBlue

WestfaliaEscorialGreen

WestfaliaPastelWhite

1984SportJokerRedHighTop







1984SportJoker1Red





1984SportJokerWaterWhitePop







































WestfaliaMerianBrown

WestfaliaKurilenBlue

WestfaliaTaubenGreyMet







1985SportJokerBrown



























From 01/85 Price list it would appear that A7A7 Light Grey (Lichtgrau) and 4J4 Kurilen Blue (Kurilenblau) were no longer available and that the following were added to the colours available:

B9B9 Ivory Beige (L567) (Elfinbein) - Available with interior upholstery van Dyck Green/Brown (KW).

J2J2 Marine Blue (LA5B) (Marineblau) - Available with interior upholstery van Dyck Blue/Brown (KD).

WestfaliaIvoryBeige

WestfaliaMarineBlue

1984SportJokerHighBeige

1987SportJokerHighBlue

ElfinBeigeSportJokerPop

































3) Volkswagen Westfalia Sport Joker Furniture Specification

Volkswagen Westfalia Sport Joker Tin Top

SportJokerOutline

















The VW Westfalia Sport Joker layout for all models consisted of:

1) Wardrobe and storage unit over the engine bay.

2) Cushion 120 cm wide over the engine bay.

3) Full width rock n roll bed.

4) Rear fold out table

5) Buddy Seat / Storage box

The Sport Joker bus tintop version has 5 seats but with the addition of either a two or three seater middle seat bank can have up to a maximum of 9 seating places.

VW Westfalia Sport Joker Tintop Interior Photos

The Westfalia Sport Joker Tin Top had beige furniture and upholstery with either brown and blue or brown and green stripes.

VW Westfalia Sport Joker (Tintop) with “Van Dyck KD” (beige base with brown and blue stripes) upholstery











VW Westfalia Joker (Tintop) with “Van Dyck KW” (beige base with brown and green stripes) upholstery











Volkswagen Westfalia Sport Joker 1 Pop Top

SportJoker1Outline



















VW Westfalia Sport Joker 1 Poptop Interior Photos

The VW Westfalia Sport Joker 1 had beige furniture and upholstery with either brown and blue or brown and green stripes.

VW Westfalia Sport Joker 1 (Poptop) with “Van Dyck KD” (beige base with brown and blue stripes) upholstery

1984SportJoker1Int1

















VW Westfalia Sport Joker 1 (Poptop) with “Van Dyck KW” (beige base with brown and green stripes) upholstery

1985SportJokerGBInt1

1985SportJokerGBInt4

1985SportJokerGBInt2

1984SportJoker1BgInt2

1984SportJoker1BGInt14

1984SportJoker1BGInt7

1984SportJoker1BGInt10

1984SportJoker1BgInt1

1984SportJoker1BGInt9

1984SportJoker1BGInt15

1984SportJoker1BGInt5

1985SportJokerGBInt5

1984SportJoker1BGInt13
1984SportJoker1BGInt11
1984SportJoker1BGInt12

1984SportJoker1BGInt8

1984SportJoker1BGInt4

1984SportJoker1BGInt6































































Volkswagen Westfalia Sport Joker 3 High Top

SportJoker3Outline

















VW Westfalia Sport Joker 3 Hightop Interior Photos

The VW Westfalia Sport Joker 3 had beige furniture and upholstery with either brown and blue or brown and green stripes.

VW Westfalia Sport Joker 3 (Hightop) with “Van Dyck KD” (beige base with brown and blue stripes) upholstery

1987SportJokerBBint1

1987SportJokerBBint2

1987SportJokerBBint3













VW Westfalia Sport Joker 3 (Hightop) with “Van Dyck KW” (beige base with brown and green stripes) upholstery

1984SportJokerHighBGInt1

1984SportJokerHighBGInt2

1984SportJokerHighBBInt3















Having the same layout as the Sport Joker 1 but with a hightop option.

4) Volkswagen Westfalia Sport Joker Upholstery Specification

The VW Westfalia Sport Joker had beige furniture and the upholstery was either “van Dyck KD” (brown and blue stripes) or “van Dyck KW” (brown and green stripes).

1982JokerColourRange











This material seems to be harder wearing than the earlier options but can still show signs of wear on seat edges etc.

If “van Dyck KD” (brown and blue stripes) upholstery was specified the curtains and rear armrest were made from material with blue and  brown dots.

BlueBrownCurtainMaterial











If “van Dyck KW” (brown and green stripes) upholstery was specified the curtains and rear armrest were made from material with green and  brown dots.

GreenBrownCurtainMaterial











5) Volkswagen Westfalia Sport Joker Roof Specification

VW Westfalia Sport Joker 1 Pop Top Roof Version:

Original Westfalia Poptop fibre glass roof (VW Order Number M 073 with fitting kit).

Luggage rack over the drivers cab.

Fibreglass roof had an opening plastic window (29 cm x 39 cm) with mosquito net and black out material.

Double bed in pop top roof 185 cm x 122 cm.

Total height of Sport Joker 1 with pop top is 205 cm with roof down.

The roof canvas on pop tops was light brown for all Sport Jokers.

1985SportJokerPoptop2

1985SportJokerPoptop1

1984SportJoker1BGInt6













VW Westfalia Sport Joker 3 High top Roof Version:

Original Westfalia hightop fibre glass roof (VW Hightop with fitting kit).

Large plastic double glazed panorama window at the front.

Insulated with 25mm insulation allowing use of camper in all seasons.

One 40 cm x 40 cm  lifting air vent with mosquito net.

Front cupboard locker over drivers cabin.

Double bed in hightop roof 194 cm x 116 cm.

Total height of Sport Joker 3 with high top is 265 cm.

The double bed in roof on pop tops and high tops was light brown for all Sport Jokers.

1984WestfaliaJoker3BGInt1













6) Volkswagen Westfalia Sport Joker Flooring Specification

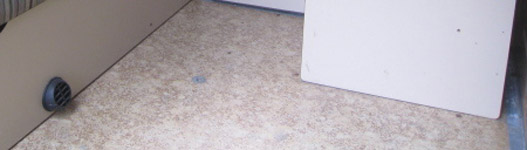

The rear floor was a multi coloured lino type material.

1985SportJokerRearLino













Because the Sport Joker was a basic model the front was not carpeted but it had a black PVC flooring as would have been supplied in a normal Transporter van.

SportJokerFrontFlooring













7) Volkswagen Westfalia Sport Joker Door Trim Specification

On the VW Westfalia Sport Joker the door trims and seat vinyl were dark brown.

1985SportJokerDoorTrim



















8) Volkswagen Westfalia Sport Joker Standard Model Specification

Insulation

Insulation and cladding of the sidewalls and roof of the passenger compartment with decorative plywood veneer panels.

PVC coated base plate on the load bay floor.

Windows and Curtains

Curtains for all windows.

Electrical

12 Volt light over the table.

Living Area

All furniture is five sheet laminated and 15mm thick plywood with a beige PVC coating and brown PVC edging.

Seat for 3 people in the rear with a handle to convert to a bed. 188 cm x 166 cm / rear 120 cm wide (narrower at rear due to cupboard).

All seats have safety belts.

The rear seat casing has a storage capacity of 270 litres.

Upholstered cushion over engine bay 120 cm x 94 cm.

Small cupboard rear left over the engine bay with two storage cubby holes.

Roof locker cupboard above rear seat 97 cm wide.

Folding table (73 cm x 40 cm) on left side wall in the rear of bus.

Buddy seat storage box with matching upholstery behind the drivers seat.

Preparation of the body for the eventual fitment of equipment such as:

a) runners installed to allow fitting of middle seatbank.

b) Westfalia gas tank and heating.

c) Other extras such as kitchen, side seating etc

Logos

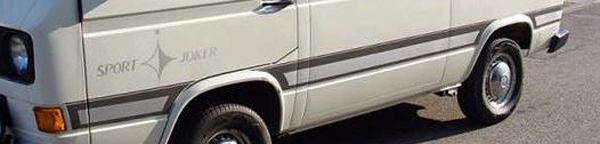

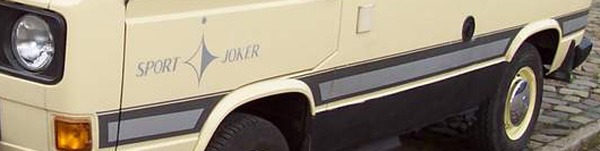

SPORT JOKER logos on the outside in silver/anthracite metallic.



9) Options available at extra cost included:

There were many options available at extra cost for your Joker. Below is a list of some of them taken from 01/85 price list. Prices include tax and are in German Deutschmark:

M013 Double driver bench seat (not in conjunction with M690 / M693) with either blue/brown or green brown striped material to match bus interior. Cost 313.50 DM

M025 Clock and speedometer with resettable mileage trip (not in conjunction with Z25). Cost 111 DM

M500 With half height dividing partition (not in conjunction with S725). Cost ? DM

M050 Dual circuit and hand brake warning light. Cost 63 DM

M054 Lockable glove box lid. Cost 61 DM

M060 Additional heating BA 6 for petrol engines  (Only in conjunction with M619). Cost 1707 DM

M060 Additional heating DA 6 for diesel engines. Cost 2284 DM

M074 Rear mudflaps. Cost 90 DM

M089 Windscreen in laminated safety glass. Cost 214 DM

M099 M+S Tyres 185 R 14 C 6 PR 99/97 N Fulda “Krystall” (Not in conjunction with M171). Cost 182 DM

M102 Heated rear screen (not in conjunction with M519 but only in conjunction with M619). Cost 235 DM

M103 Stronger shock absorbers. Cost 128 DM

M162 Rubber profile strip in bumpers (not in conjunction with Z25). Cost 80 DM

M171 Steel Belt Tyres 185 R 14 C standard or at extra cost were:

697 Conti RS 771 (Not in conjunction with M099). Cost 41 DM

949 Goodyear G 800 + S (Not in conjunction with M099) Cost 41 DM

954 Michelin XC (not in conjunction with M099). Cost 41 DM

M173 Steel belt tyres Michelin 205/70 R14 (Only in conjunction with M401). Cost 551 DM

M194 Two convex door mirrors. Cost 24 DM

M206 Dipping rear view mirror. Cost 29 DM

M208 Towbar with ball type hitch. Cost 557 DM

M220 Limited slip differential (not in conjunction with Automatic but only in conjunction with 5 speed). Cost 1021 DM

M221 One quarter light window in drivers door (not in conjunction with Z25). Cost 84 DM

M288 Headlight washers. Cost 370 DM

M386 Carpet over front wheel arches inside bus. Cost 140 DM

M401 Alloy wheels 6J X14 (only in conjunction with M173). Cost 1232 DM

M425 Rear screen wash / wiper (not in conjunction with M519). Cost 361 DM

M430 Heat absorbing laminated safety glass windscreen (not in conjunction with M089). Cost 342 DM

M511 Instrument panel part padded (not in conjunction with M595). Cost 106 DM

M519 Removal of normal glass in rear (not in conjunction with M425). Cost 99 DM

M530 Automatic Step (Not sure what this was ? but not in conjunction with Westfalia Heating). Cost 539 DM

M534 Child lock on sliding door. Cost 30 DM

M550 Sliding window with fly net in the sliding door (not in conjunction with M519). Cost 238 DM

M551 Halogen Headlights. Cost 171 DM

M552 Additional heater in passenger compartment (only in conjunction with M619). Cost 248 DM

M558  Two batteries 45 Ah with split charge relay for Diesel engines (only in conjunction with M621). Cost 251 DM

M558  Two batteries 45 Ah with split charge relay for Petrol engines. Cost 269 DM

M561 Quarter light windows in front cab.(not in conjunction with Z25). Cost 150 DM

M568 Heat absorbing glass for side and rear windows. (Not in conjunction with M519). Cost 256 DM

M568 Heat absorbing glass for driver and passenger door windows. Cost 63 DM

M571 Rear Fog Light (not in conjunction with Z01). Cost 59 DM

M588 Sunroof in drivers cab area (Only for sport joker with VW steel roof). Cost 851 DM

M597 63 Amp Battery.(Diesel Models). Cost 81 DM

M619 More powerful alternator 65 Ah for Diesel engine. Cost 100 DM

M621 More powerful alternator 90 Ah. (not in conjunction with Diesel motor). Cost 223 DM

M622 Cigarette lighter with 12 volt outlet. Cost 48 DM

M640 Long term underbody treatment. Cost 342 DM

M643 Storage pocket on drivers door. Cost 49 DM

M652 Intermittent windscreen wipers (not in conjunction with Z01). Cost 59 DM

M657 Power steering with smaller steering wheel (only in conjunction with 66Kw motor). Cost 1622 DM

M659 Halogen Fog lights (not in conjunction with Z01 but only in conjunction with M619). Cost 298 DM

M675 Rev Counter with Digital Clock (not in conjunction with Z25 / M025). Cost 330 DM

M690 Rotating seat frame for driver seat (not in conjunction with M013). Cost 227 DM

M693 Rotating seat frame for passenger seat (not in conjunction with M013). Cost 227 DM

S725 Removal of standard Volkswagen seats when ordering Westfalia Komfort seats in drivers cab as an extra (not in conjunction with M013). Cost 338 DM

S790 Exhaust katalysator and lamda sensor with every vehicle with exhaust cleaned engine (allowing the use of leaded petrol). Cost 160 DM

M987 Sliding window with fly net opposite the sliding door (only in conjunction with M550. Cost 238 DM

M999 Sun visor with mirror and light. Cost ? DM

R01 Radio “Alpha” Mono. Cost 372.00 DM

R11 Radio “Beta” Mono. Cost  472.00 DM

R22 Radio “Gamma” Stereo Cassette. Cost 743.70 DM

The following special equipment cannot be ordered for this model:

M504 Fresh Air Vents

M560 Steel sliding roof

Also there were a couple of packages you could buy such as:

Z01 Bad weather package including Rear fog lights, Intermittent windscreen wipers, Halogen fog lights (Only in conjunction with M619 for petrol engine vehicles). Cost 385 DM

Z25 Extra-Packet including rev counter with digital clock and speedometer with resettable mileage trip, Rubber trim on bumpers, Quarter light windows in cab. Cost 495 DM



Also available as additional options:

Cruise Control System (only for vehicles from 51Kw (70PS). Order Number 216 002 446 001. Cost 833 DM

Westfalia radio package Blaupunkt Heidelberg SQR 24. Order Number 216 002 346 001. Cost 1288 DM

Westfalia radio package Phillips Racing 744. Order Number 216 003 346 001. Cost 903 DM

Five plastic double glazed tinted windows in living area of bus (Only in conjunction with M519). The window opposite the sliding door above the kitchen is an opening window. Order Number 216 006 145 001. Cost 838 DM.

Two Westfalia Komfort seats with armrests and integrated headrests in drivers cab instead of the standard VW Joker model seats. (Only in conjunction with S725). Order Number 216 001 000 030. Cost 1133 DM

Installation of a second lifting air vent in the hightop (Sport Joker 3) roof. Order Number 216 010 145 010. Cost 189 DM

Colour of pop top roof (instead of white) in beige (like Club Joker) or the body colour of the vehicle.

Normal paint. Order Number 216 094 400 010. Cost 169 DM

Metallic Paint Order Number 216 094 400 011. Cost 337 DM

Colour of high top roof.(instead of white) in beige (like Club Joker) or the body colour of the vehicle.

Normal paint. Order Number 216 095 400 010. Cost 268 DM

Metallic Paint Order Number 216 095 400 011. Cost 479 DM

For vehicles with automatic gearbox or Turbo Diesel engine there was a modification to the second hot air outlet in the rear in the living area. Order Number 216 092 400 005. Cost 31 DM.

Two loudspeakers (15 Watt) fitted in the rear roof locker. Only in conjunction with radio R22. Order Number 216 001 346 001. Cost 78 DM



10) Accessories available at extra cost included (Prices in German Deutschmark and Order Number from Accessories Price List dated 03/84):

Freestanding Awning (350 cm x 230 cm). Over roof complete with supports. Order Number 216 008 433 001, Cost 1830 DM.

Freestanding Awning (295 cm x 210 cm). Over roof complete with supports. Order Number 216 009 433 001, Cost 1199 DM.

Freestanding Awning (350 cm x 280 cm). Order Number 216 008 433 010, Cost 635 DM.

Sun Awning (250 cm x 190 cm). Order Number 216 006 433 010, Fastens to the guttering on van, Cost 152 DM.

Pull out side awning (250 cm x 190 cm), Sun / rain Awning in compact Aluminum housing.  Order Number 538 199 538 205, Cost 831 DM.

Side wall wind shield (left or right) for Pull out side awning. Order Number 538 203, Cost 116 DM

PVC coated tarpaulin material luggage bag for the luggage rack above the front cabin (only for Sport Joker 1 pop top). Order Number 216 004 443 001, Cost 158 DM.

Surfboard Rack for VW Transporter with steel roof, pop top or high top:

    Roof bars for VW Transporter T3. Order Number 216 002 434 020, Cost 556 DM.

    Swinging arm attachment set for one surfboard. Order Number 216 001 434 021, Cost 215 DM.

    Adaptor bracket set for one surfboard. Order Number 216 001 434 022, Cost 122 DM.

Surfboard rack for Westfalia hightops with pre installed screw connection:

    2 surfboard holders to be mounted on left and right of roof:

    For Westfalia Joker high top (after 08/84). Order Number 216 003 434 020, Cost 464 DM.

    Adaptor bracket set for one surfboard. Order Number 216 003 434 021, Cost 149 DM

Ski Holder (4 pairs of ski)  for VW Transporter tailgate. Order Number 539 080, Cost 385 DM.

Westfalia Comfort Seats with armrests and integrated headrests:

Upholstered in “Van Dyck KW” Green/Brown striped material. Order Number 539 084, Cost 598 DM.

Upholstered in “Van Dyck KD” Blue/Brown striped material. Order Number 539 085, Cost 598 DM.

Westfalia Middle Seat Bank:

Two seater upholstered in “Van Dyck KW” Green/Brown striped material. Order Number 216 084 808 001, Cost 1144 DM.

Two seater upholstered in “Van Dyck KD” Blue/Brown striped material. Order Number 216 084 807 001, Cost 1144 DM.

Insulated cover for pop top canvas when roof is up.  Order Number 504 572, Cost 324 DM.

Mosquito net for the tailgate (van is already fitted with press studs for this as standard). Order Number 216 004 238 001, Cost 68 DM.

Mosquito net for the sliding door. Order Number 216 006 238 001, Cost 98 DM.

Child net for inside Sport Joker 1 pop top roof. Order Number 216 007 237 020, Cost 64 DM.

Child net for inside Sport Joker 3 high top roof. Order Number 216 015 113 050, Cost 64 DM.

12 volt magnetic light. Order Number 216 014 345 001, Cost 46 DM.

Connecting cable 1.4 meter long for between vehicle and cable drum.  Order Number 507 698, Cost 31 DM.

Twenty five metre 220 volt mains hook up cable drum. Order Number 507 906, Cost 286 DM.

Adaptor for filling gas tank in France and Italy. Order Number 523 266, Cost 39 DM.

Water canister (10 litres) with funnel. Order Number 504 051, Cost 22 DM.

Waste water tank. Order Number 216 003 210 020, Cost 118 DM

Head rests for rear seat and optional middle seat bank. Order Number 502 320, Cost 55 DM each

Universal folding table stand. Order Number 216 027 227 001, Cost 61 DM.

Fire extinguisher with holder 1kg. Order Number 216 011 250 010, Cost 53 DM.

Fire extinguisher with holder 2kg. Order Number 216 012 250 010, Cost 74 DM.

Head cushions for comfortable sleeping:

Upholstered in “Van Dyck KW” Green/Brown striped material. Order Number 216 002 808 030, Cost 53 DM.

Upholstered in “Van Dyck KD” Blue/Brown striped material. Order Number 216 002 807 030, Cost 53 DM.

11) Volkswagen Westfalia Sport Joker Side Stripes and Logos

VW Westfalia Sport Joker side stripes and driver and passenger door decals.

SportJokerLogoPastelWhite

SportJokerLogoRed

sportjokerlogobeige





























1985SportJokerLogoDoor















12) VW Westfalia Sport Joker Rear Badges

1984SportJokerRearLogo1

1985SportJokerLogoRear













13) Links to Volkswagen Westfalia Sport Joker Sales Brochures (Prospekt) and Price Lists (Preisliste)

Please note that some of the links take you to an external site called vwpix.org which is an excellent source of sales literature for all versions of VW camper van. Most of the brochures are in German language as this was the main market.

VW Westfalia Sport Joker Sales Brochures Prospekt Download

1982 VW Westfalia Sport Joker Sales Brochure Prospekt (2 Pages Black and White)

1983 VW Westfalia Multimobile Joker, Sport Joker, Club Joker, Mosaik Sales Brochure Prospekt (6 Pages Colour)

1983 VW Westfalia Multimobile Joker, Sport Joker, Club Joker Sales Brochure Prospekt (14 Pages Colour)

1984 VW Westfalia Multimobile Joker, Sport Joker, Club Joker, Mosaik Sales Brochure Prospekt (6 Pages Colour)

1985 VW Westfalia Multimobile Joker, Sport Joker, Club Joker Sales Brochure Prospekt (12 Pages Colour)

1985 VW Westfalia Multimobile Joker, Sport Joker, Club Joker Sales Brochure Prospekt (14 Pages Colour)

Jan 1985 VW Westfalia Joker, Sport Joker, Club Joker Sales Brochure Prospekt including Prices (16 Pages Black and White)

VW Westfalia Sport Joker Accessories Zubehör Download

1983 VW Westfalia Multimobile Accessories Zubehör Sales Brochure Prospekt (8 Pages Colour)

VW Westfalia Sport Joker Price Lists Preisliste Download

March 1984 VW Westfalia Joker, Club Joker, Sport Joker Price List Preisliste (4 Pages Black And White)

March 1984 VW Westfalia Accessories Price List Preisliste (4 Pages Black And White)

November 1984 VW Westfalia Accessories Price List Preisliste (2 Pages Black And White).

Jan 1985 VW Westfalia Joker, Club Joker and Sport Joker Sales Brochure Prospekt and Price List Preisliste (16 Pages Black And White)



For loads more VW Westfalia T25 / T3 / Vanagon downloads CLICK HERE

To get notifications when this website is updated subscribe to my VW Camper Blog or Follow Us on Facebook.

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)



Please read the Disclaimer and Privacy and Cookie Policy before using this site.

© Copyright 2009 -     All rights reserved
